When do we perform Transcutaneous pacing (TCP)?

  • Symptomatic clinically significant bradycardias

    • Don't just treat a number. Treat those bradycardias associated with hypotension, pulmonary edema, or evidence of decreased cerebral perfusion that is unresponsive to initial first line measure

    • Initiate TCP while searching for correctable causes and concomitantly administering other therapies (i.e. fluids, atropine, digibind, glucagon, high dose insulin)

    • Three common causes of bradycardia in the emergency department include drugs (specifically overdoses) hyperkalemia, and myocardial ischemia :





  • While most textbooks may quote overdrive pacing for refractory tachyarrhythmias, practically speaking, most of these will get simply get cardioverted



What about transvenous pacing (TVP)?

  • TCP is only a bridge until a transvenous pacemaker can be placed

  • There are a few instances where TCP may be preferable over TVP

    • Patients who have received thrombolytics

    • Patients who may respond to respond to therapy (eg. hyperkalemia, drug overdose)

Five Step Approach to Transcutaneous Pacing



  • Step 1: Apply the pacing electrodes and consider sedation (eg. versed)

    • Avoid placing the pads over an AICD or transdermal drug patches

    • There is little data on optimal placement however, try to place the pads as close as possible to the PMI (point of maximal impulse) [1,2]

Step 1 TC pacing.jpg

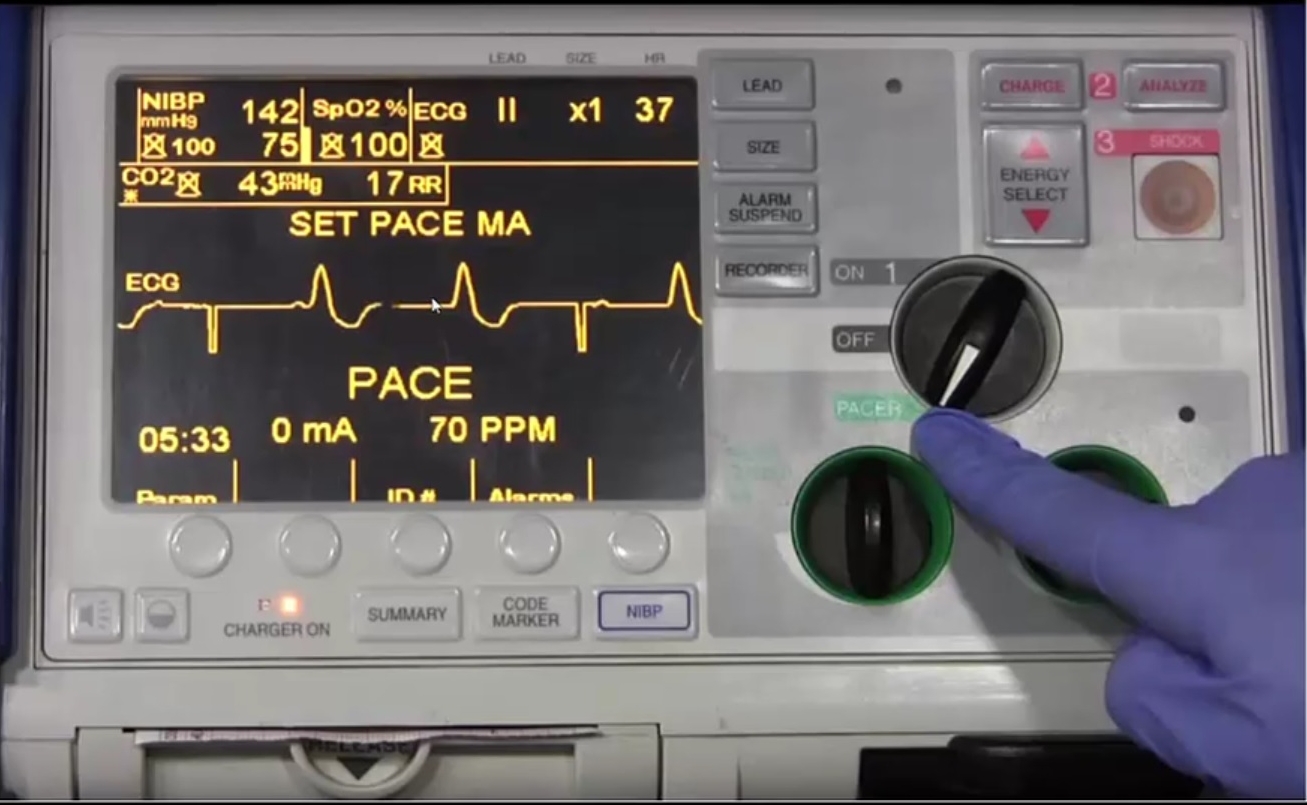

  • Step 2:  Turn on the monitor and set it to "pacing mode"

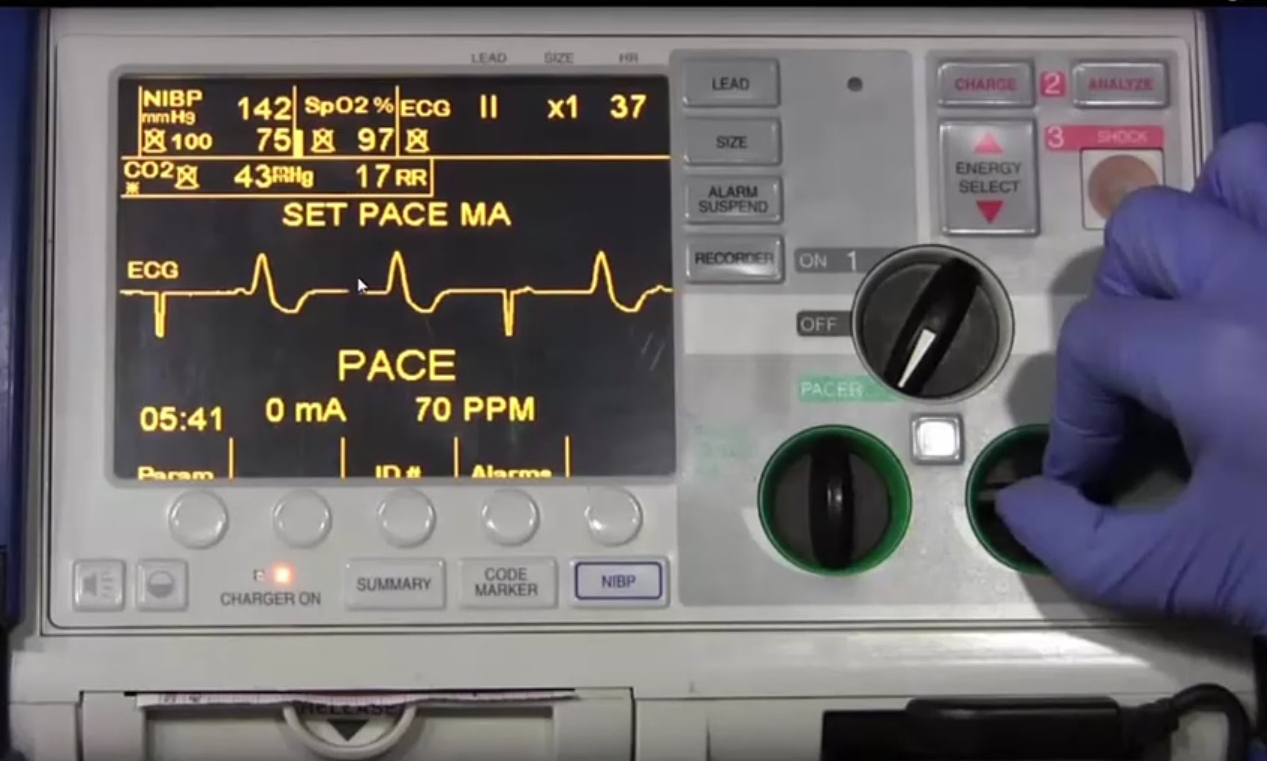

  • Step 3:  Select the pacing rate using the rate button (generally 60-70 bpm is adequate)

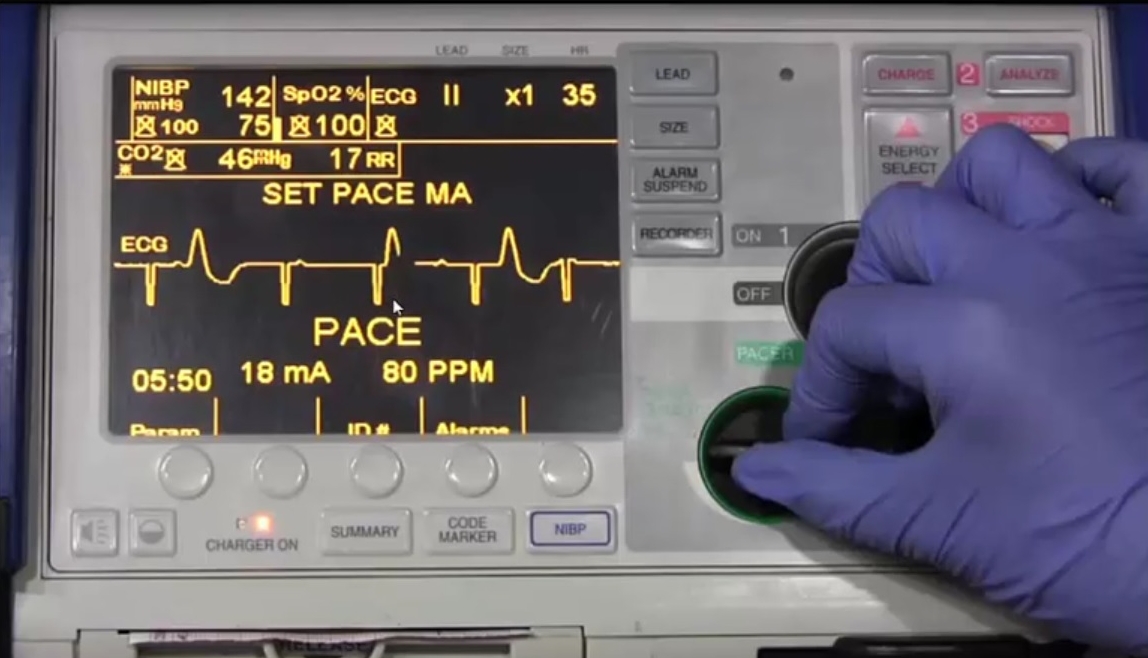

  • Step 4:  Increase current output from minimal until capture is achieved

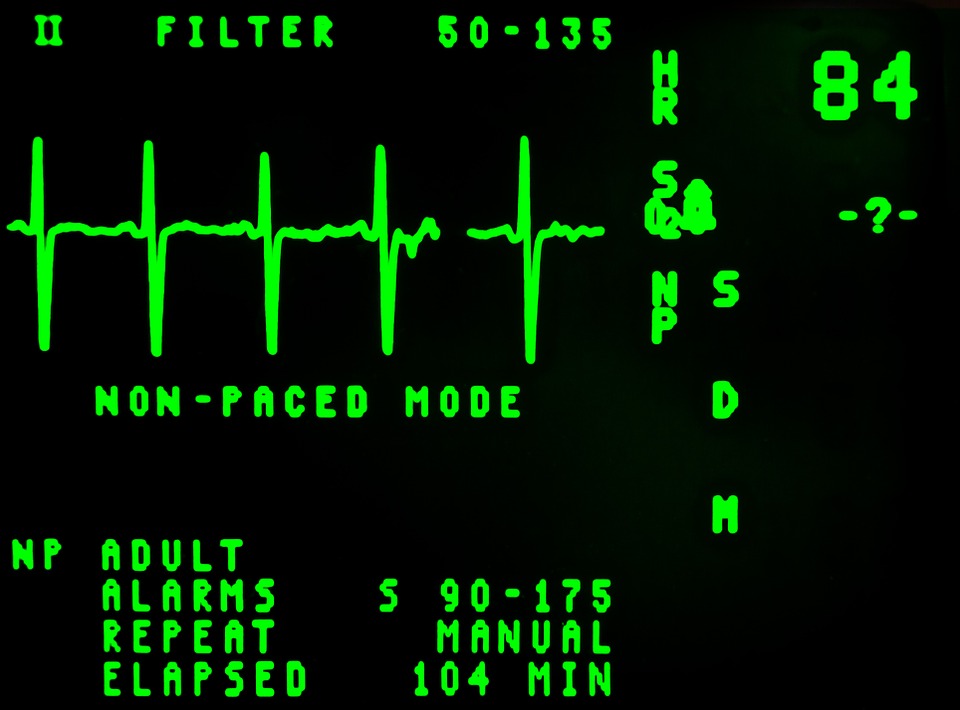

Below is an ECG with incomplete capture.

TC pacing ecgs.jpg

As the mA output is increased, complete capture is achieved.



  • Step 5: Confirm mechanical capture with pulse or ultrasound [3,4]

Complications

  • Induction of Vfib (rare)

  • Patient discomfort, burns (these are rare due to the large pads and lower outputs of today's TC pacing devices)

  • Failure to recognize an underlying treatable ventricular fibrillation due to obscuration of the ECG by pacer spikes

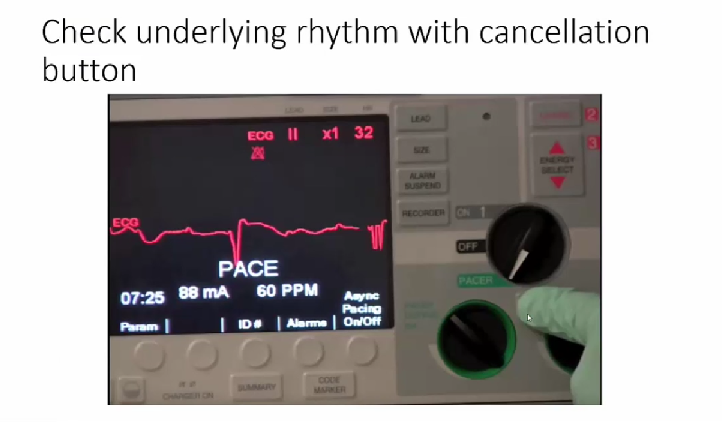

    • This can be troubleshooted by hitting the "cancellation button" on your monitor. This will pause the TCP spikes for a few seconds so you can identify the underlying rhythm.



Tired of Reading?  Watch Jeff Holmes

discuss TC pacing in the ED

DownloadShare This lecture was recorded at the 2016 Maine Medical Center Winter Symposium in Sugarloaf, Maine. mmcwintersymposium.com In this talk, Dr Jeff Holmes provides an overview of the indications and technique of emergency pacing in the emergency department. Jeff Holmes, MD Assistant Professor of Emergency Medicine Maine Medical Center Tufts University School of Medicine, Boston, MA


Written by Jeffrey A Holmes, MD

References

1.  Panescu D, Webster J G, and Tompkins W J et al.: Optimisation of transcutaneous cardiac pacing by three-dimensional finite element modelling of the human thorax. Med Biol Eng Comput. 1995; 33: 769. [PMID: 8558949]

2. Webster J G, and Tompkins W J et al.: Optimisation of transcutaneous cardiac pacing by three-dimensional finite element modelling of the human thorax. Med Biol Eng Comput. 1995; 33: 769. [PMID: 8558949]

3.  Ettin D and Cook T.: Using ultrasound to determine external pacer capture. J Emerg Med.  1999; 17:1007–1009. [PMID: 10595889]

4.  Holger J S, Lamon R P, and Minnigan H J et al.: Use of ultrasound to determine ventricular capture in transcutaneous pacing. Am J Emerg Med.  2003; 21: 227. [PMID: 12811719]
